Sabik Ø480 TM Clear

Sabik

-

BIS Approved

Ingress Protection

Electric Surge Protection

Electrical Class I

Green Future

Impact Resistance

Make in India

No and Low Maintenance

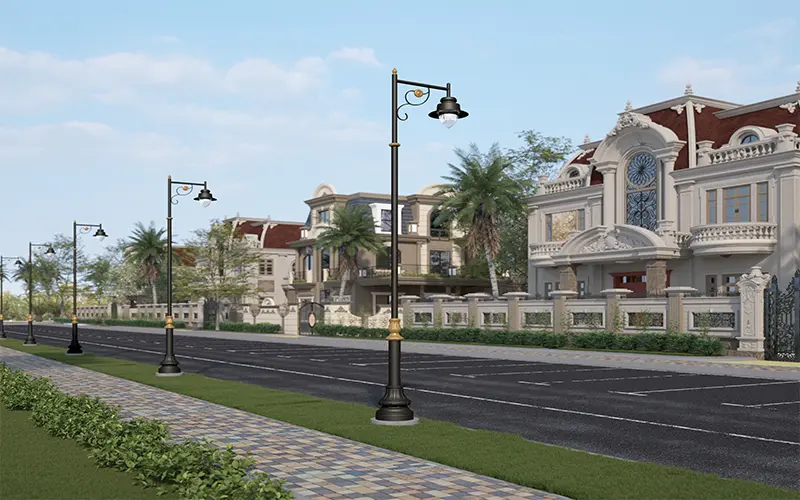

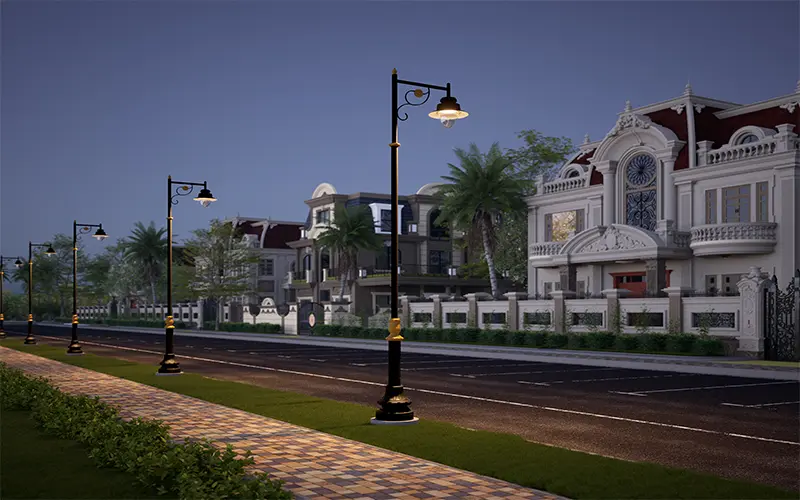

Application areas

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    Aluminium , Steel

  • Heat Sink

    High Pressure Die Cast Aluminium

  • Diffuser

    Injection Moulded Clear PC

  • Optics

    Optical Grade Clear PC/PMMA

  • Ingress Protection

    IP66

  • Impact Resistance

    IK10

  • Serviceability

    Optical Compartment , Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    30W , 45W , 60W , 72W , 90W

  • Installation Height

    3M , 4M , 5M

  • Power Supply

  • Power Efficiency*

    ≥85%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤10%

  • External Surge Protection**

    10KV

  • LED^^

    High Bright LED

  • LED CCT Initial

    5700°K

  • Optics

    Type II , Type V

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 50°C with wind effect

  • Average Ambient Temperature

    +25°C

  • Control method

    ON/OFF

GAD

Downloads

-

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Sabik Ø480mm TM PC Clear SL 30w LED 57K 30 5700
2 - Sabik Ø480mm TM PC Clear SL 45w LED 57K 45 5700
3 - Sabik Ø480mm TM PC Clear SL 60w LED 57K 60 5700
4 - Sabik Ø480mm TM PC Clear SL 72w LED 57K 75 5700
5 - Sabik Ø480mm Crown TM PC Clear SL 30w LED 57K 30 5700
6 - Sabik Ø480mm Crown TM PC Clear SL 45w LED 57K 45 5700
7 - Sabik Ø480mm Crown TM PC Clear SL 60w LED 57K 60 5700
8 - Sabik Ø480mm Crown TM PC Clear SL 72w LED 57K 72 5700
9 - Sabik Ø480mm Crown TM PC Clear SL 90w LED 57K^ 90 5700
