Perseus PT/TM Opal

Perseus

-

BIS Approved

Ingress Protection

Electric Surge Protection

Electrical Class I

Green Future

Make in India

No and Low Maintenance

Application areas

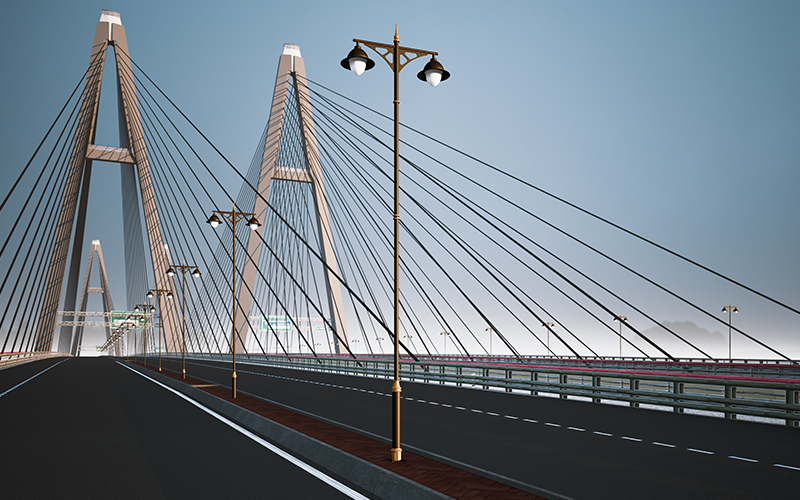

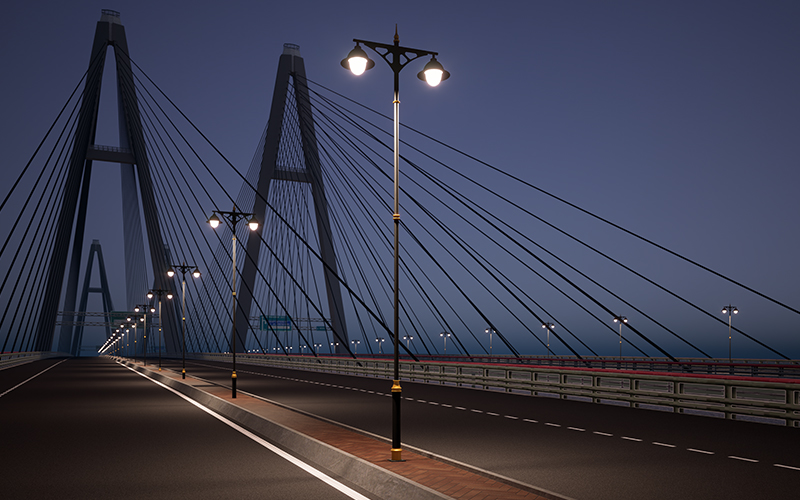

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    Aluminium , Steel

  • Diffuser

    PMMA Clear

  • Ingress Protection

    IP65

  • Serviceability

    Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    30W , 45W , 60W

  • Installation Height

    3M , 4M , 5M , 6M , 7M , 8M

  • Power Supply

  • Power Efficiency*

    ≥85%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤10%

  • External Surge Protection**

    10KV

  • LED^^

    High Bright LED

  • LED CCT Initial

    3000°K

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 50°C with wind effect

  • Average Ambient Temperature

    +25°C

  • Control method

    ON/OFF

GAD

Downloads

-

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Perseus PT Opal 30w LED 30K 30 3000
2 - Perseus PT Opal 45w LED 30K 45 3000
3 - Perseus PT Opal 60w LED 30K^ 60 3000
4 - Perseus TM Opal 30w LED 30K 30 3000
5 - Perseus TM Opal 45w LED 30K 45 3000
6 - Perseus TM Opal 60w LED 30K^ 60 3000
7 - Perseus Crown PT Opal 30w LED 30K 30 3000
8 - Perseus Crown PT Opal 45w LED 30K 45 3000
9 - Perseus Crown PT Opal 60w LED 30K^ 60 3000
10 - Perseus Crown TM Opal 30w LED 30K 30 3000
11 - Perseus Crown TM Opal 45w LED 30K 45 3000
12 - Perseus Crown TM Opal 60w LED 30K^ 60 3000
