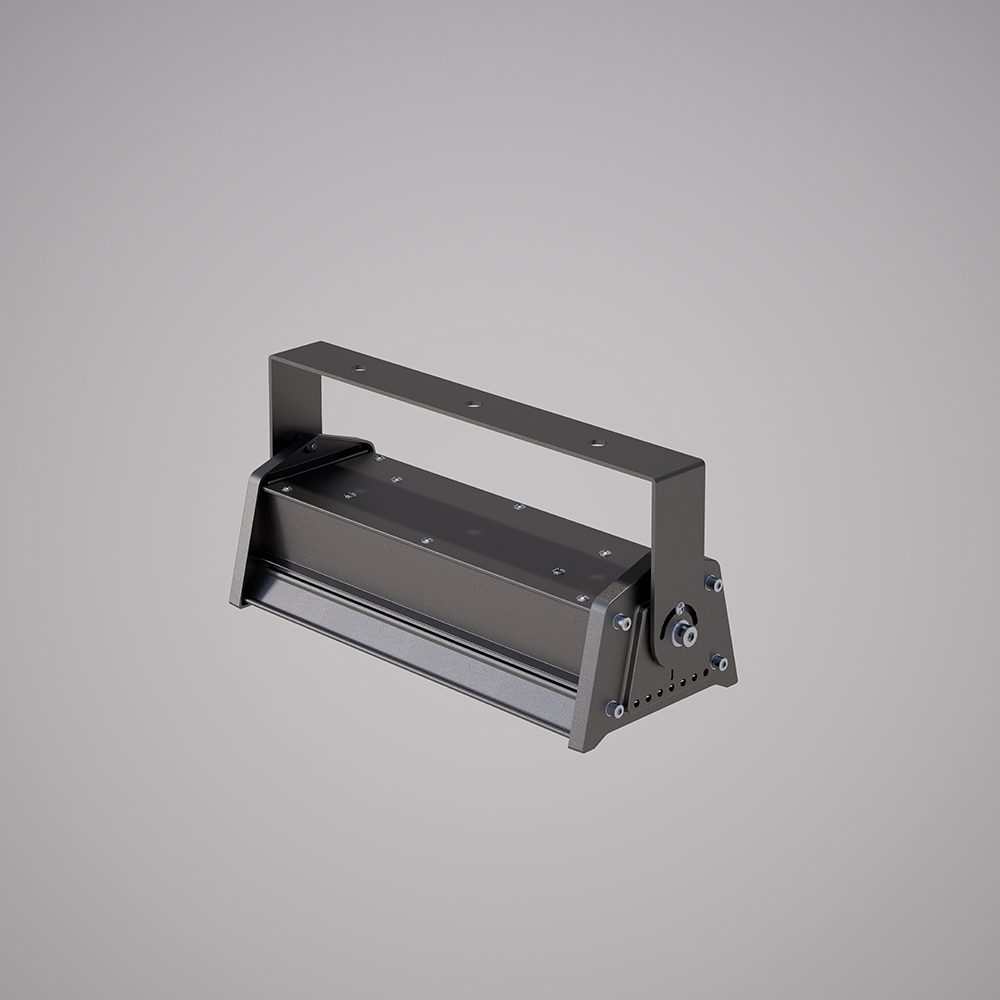

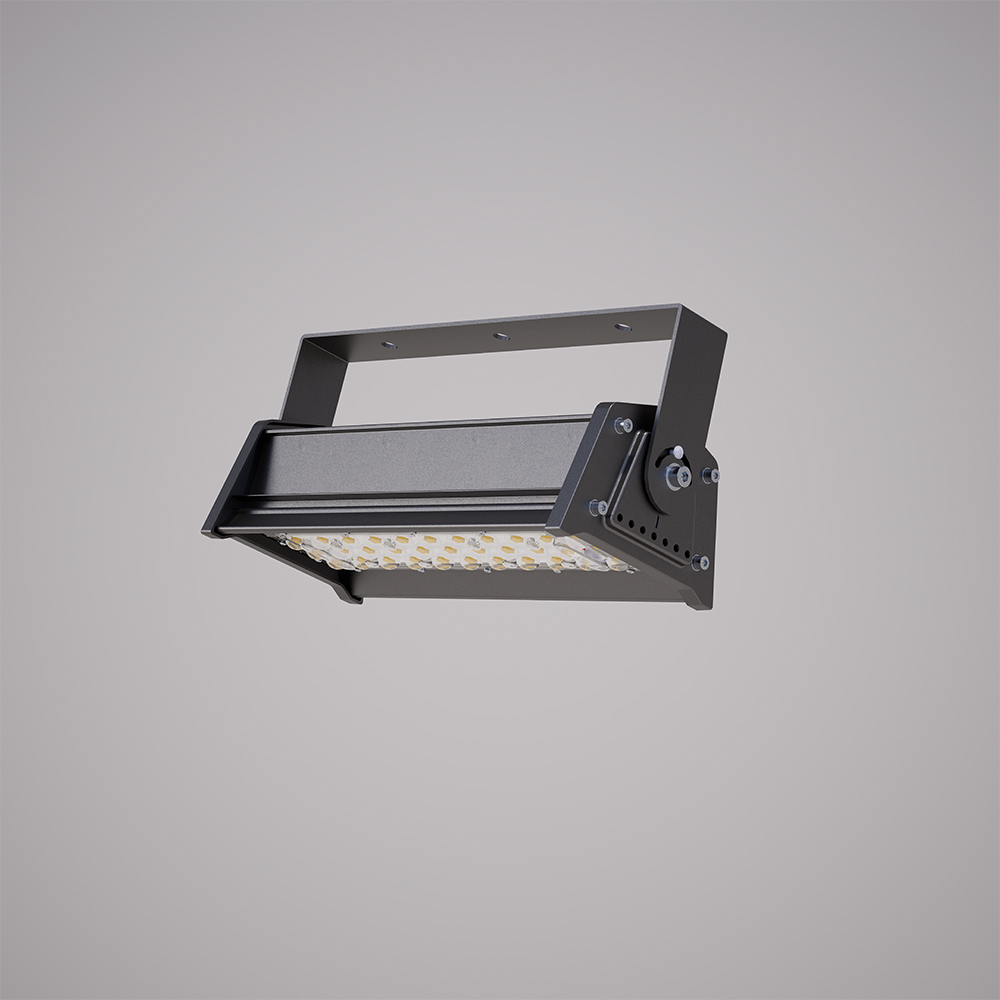

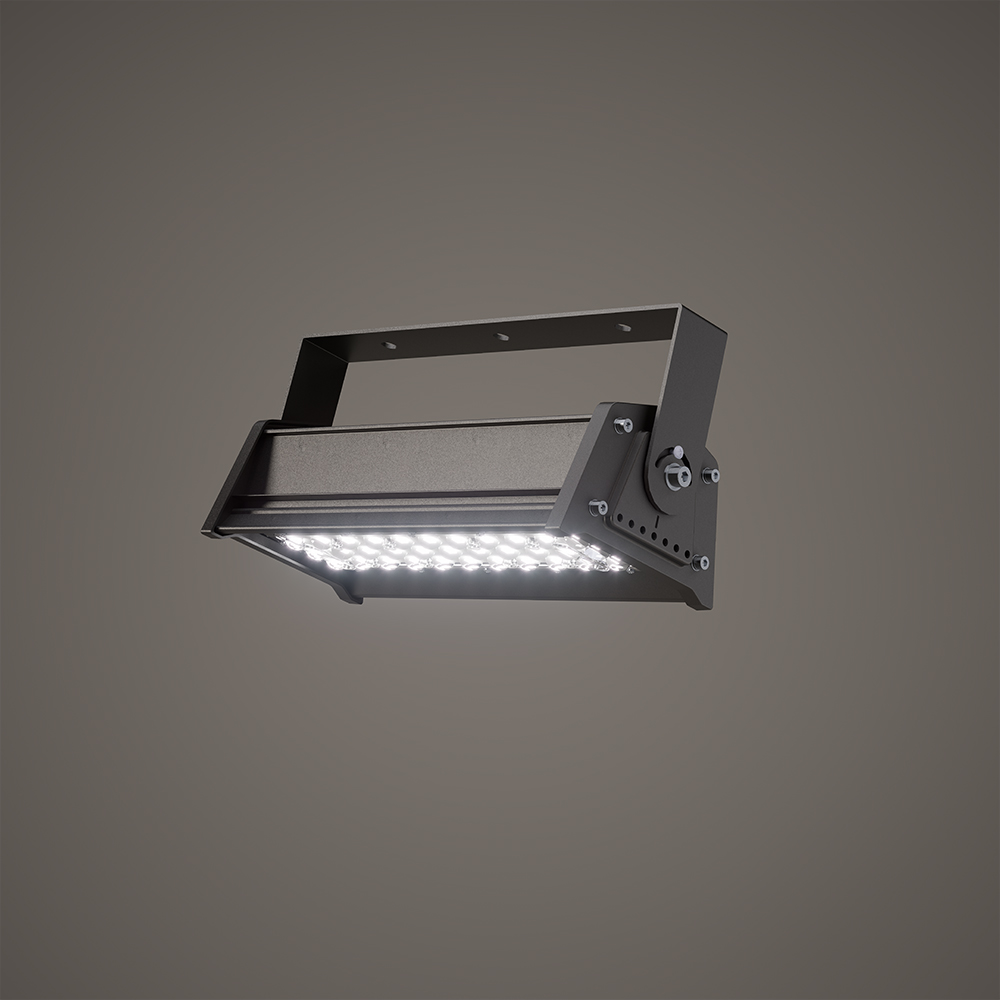

Libyans LHB - Elevate your industrial and warehousing spaces with the Libyans LHB, a high-performance linear high bay luminaire engineered for optimal efficiency. Designed to meet the rigorous demands of industrial environments, it offers superior illumination for enhanced visibility and safety.

Available in Single and Double Module variants, the Libyans LHB caters to diverse wattage needs, ensuring tailored lighting solutions for any facility. Its robust construction and precision optics make it the ideal choice for warehouses, factories, and other large spaces requiring reliable, energy-efficient lighting.

Ingress Protection 66

Electric Surge Protection

Impact Resistance 08

Electrical Class I

No and Low Maintenance

BIS Approved

Green Future

Make in India

Application areas

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    Aluminium

  • Diffuser

    Diffuser Cum Lens

  • Optics

    Optical Grade Clear PC/PMMA

  • Ingress Protection

    IP66

  • Impact Resistance

    IK08

  • Serviceability

    Optical Compartment , Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Power Supply

  • Power Efficiency*

    ≥85%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤10%

  • External Surge Protection**

    10KV

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    60W , 80W , 100W , 120W , 150W , 180W , 200W , 240W

  • Installation Height

    3M , 4M , 5M , 6M , 7M , 8M , 9M , 10M , 11 M

  • LED^^

    High Bright LED

  • LED CCT Initial

    5700°K± 500°K

  • Optics

    Asymmetrical , Type V

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 50°C with wind effect

  • Average Ambient Temperature

    +25°C

  • Control method

    ON/OFF

GAD

Downloads

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Libyans LHB1 60W LED 57K 60 5700
2 - Libyans LHB1 80W LED 57K 80 5700
3 - Libyans LHB1 100W LED 57K 100 5700
4 - Libyans LHB1 120W LED 57K 120 5700
5 - Libyans LHB2 150W LED 57K 150 5700
6 - Libyans LHB2 180W LED 57K 180 5700
7 - Libyans LHB2 200W LED 57K 200 5700
8 - Libyans LHB2 240W LED 57K 240 5700
