Libertas PT Clear

Libertas

-

Ingress Protection 66

Electric Surge Protection

Impact Resistance 10

Electrical Class I

No and Low Maintenance

BIS Approved

Green Future

Make in India

Application areas

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    Aluminium

  • Heat Sink

    High Pressure Die Cast

  • Diffuser

    Optical Grade Clear Injection Moulded PC

  • Optics

    Optical Grade Clear PC

  • Ingress Protection

    IP66

  • Impact Resistance

    IK10

  • Serviceability

    Optical Compartment , Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Power Supply

  • Power Efficiency*

    ≥85%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤10%

  • External Surge Protection**

    10KV

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    30W , 45W , 60W , 72W

  • Installation Height

    3M , 4M , 5M , 6M , 7M

  • LED^^

    High Bright LED

  • LED CCT Initial

    5700°K± 500°K

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 50°C with wind effect

  • Average Ambient Temperature

    +25°C

  • Control method

    ON/OFF

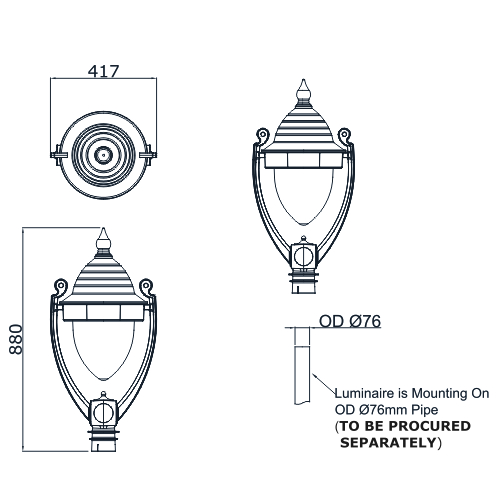

GAD

Downloads

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Libertas PT Clear 30w LED 57K 30 5700
2 - Libertas PT Clear 45w LED 57K 45 5700
3 - Libertas PT Clear 60w LED 57K 60 5700
4 - Libertas PT Clear 72w LED 57K 72 5700
