Cygnus PT OFrost

Cygnus

-

BIS Approved

Ingress Protection

Electric Surge Protection

Electrical Class I

Green Future

Impact Resistance

Make in India

No and Low Maintenance

Application areas

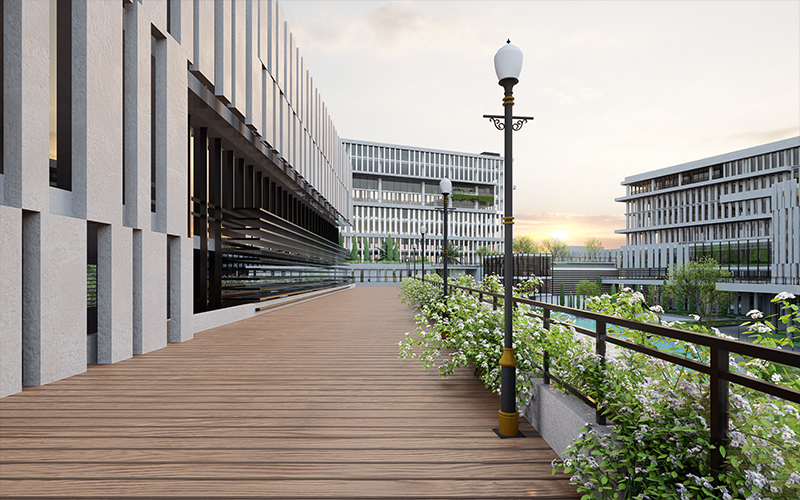

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    Aluminium , Steel

  • Diffuser

    PC Opal

  • Ingress Protection

    IP66

  • Impact Resistance

    IK08

  • Serviceability

    Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    30W , 45W

  • Installation Height

    3M , 4M

  • Power Supply

  • Power Efficiency*

    ≥85%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤10%

  • External Surge Protection**

    10KV

  • LED^^

    High Bright LED

  • LED CCT Initial

    3000°K

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 50°C with wind effect

  • Average Ambient Temperature

    +25°C

  • Control method

    ON/OFF

GAD

Downloads

-

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Cygnus Ø300mm PT OFrost 30w LED 30K 30 3000
2 - Cygnus Ø300mm PT OFrost 45w LED 30K^ 45 3000
