Chertan

Chertan

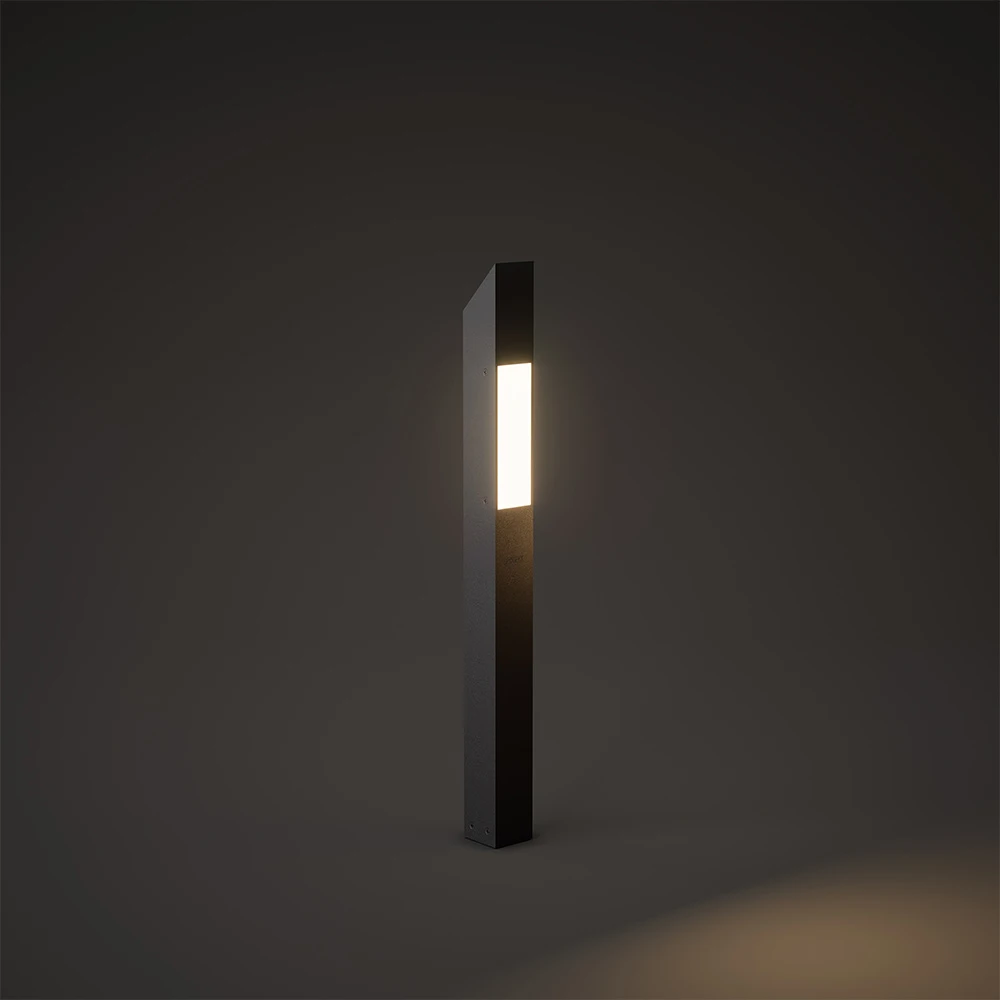

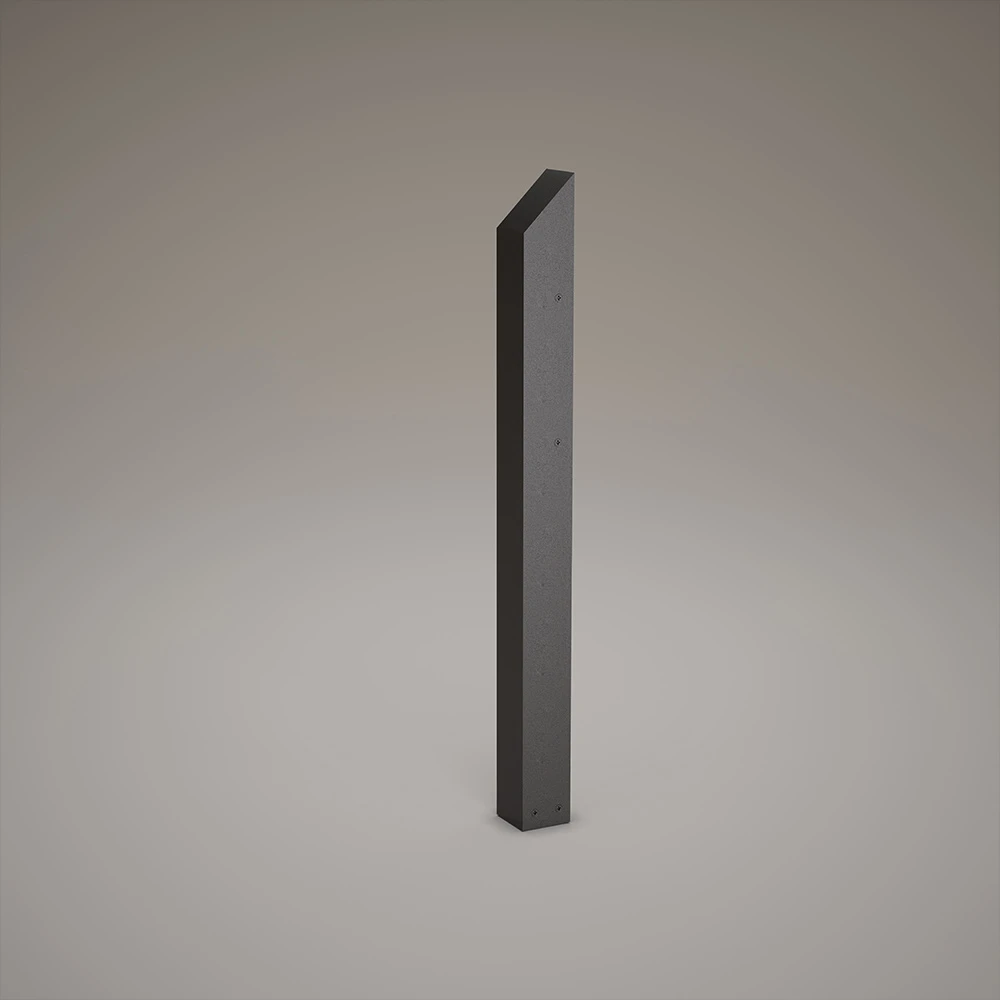

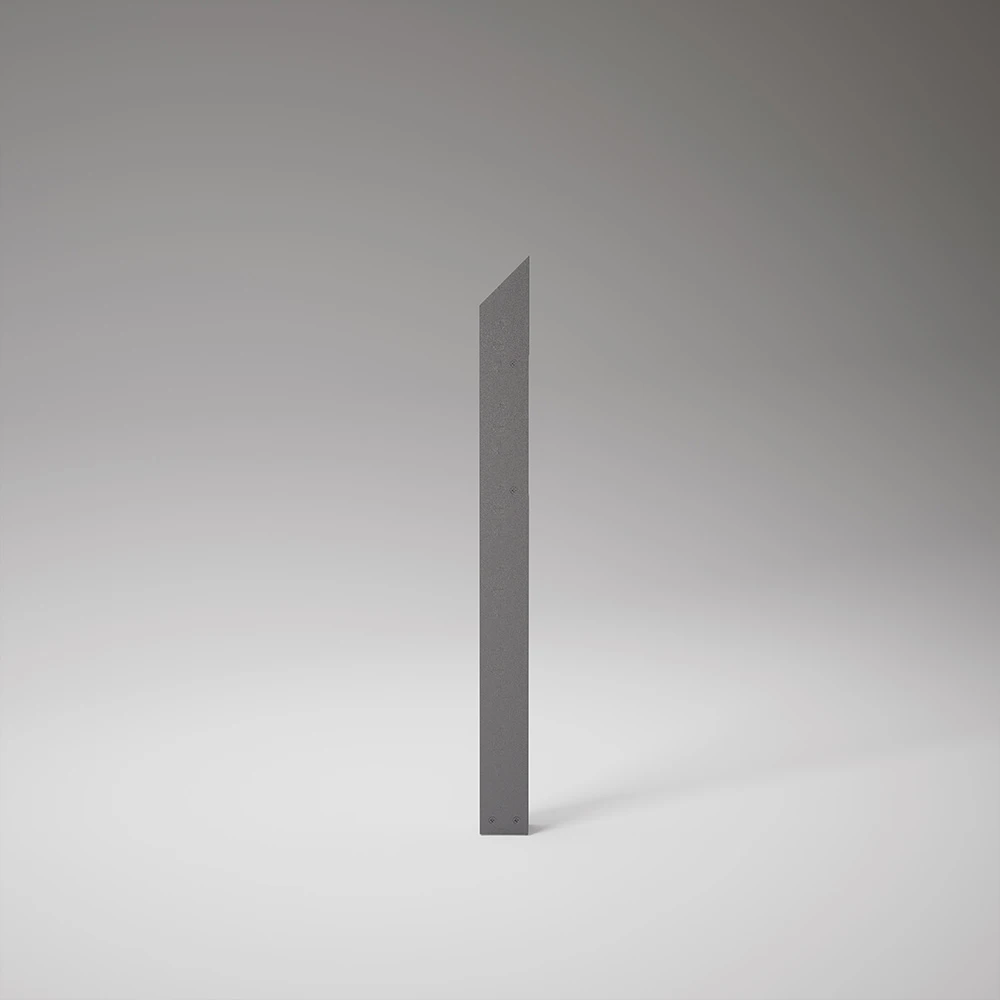

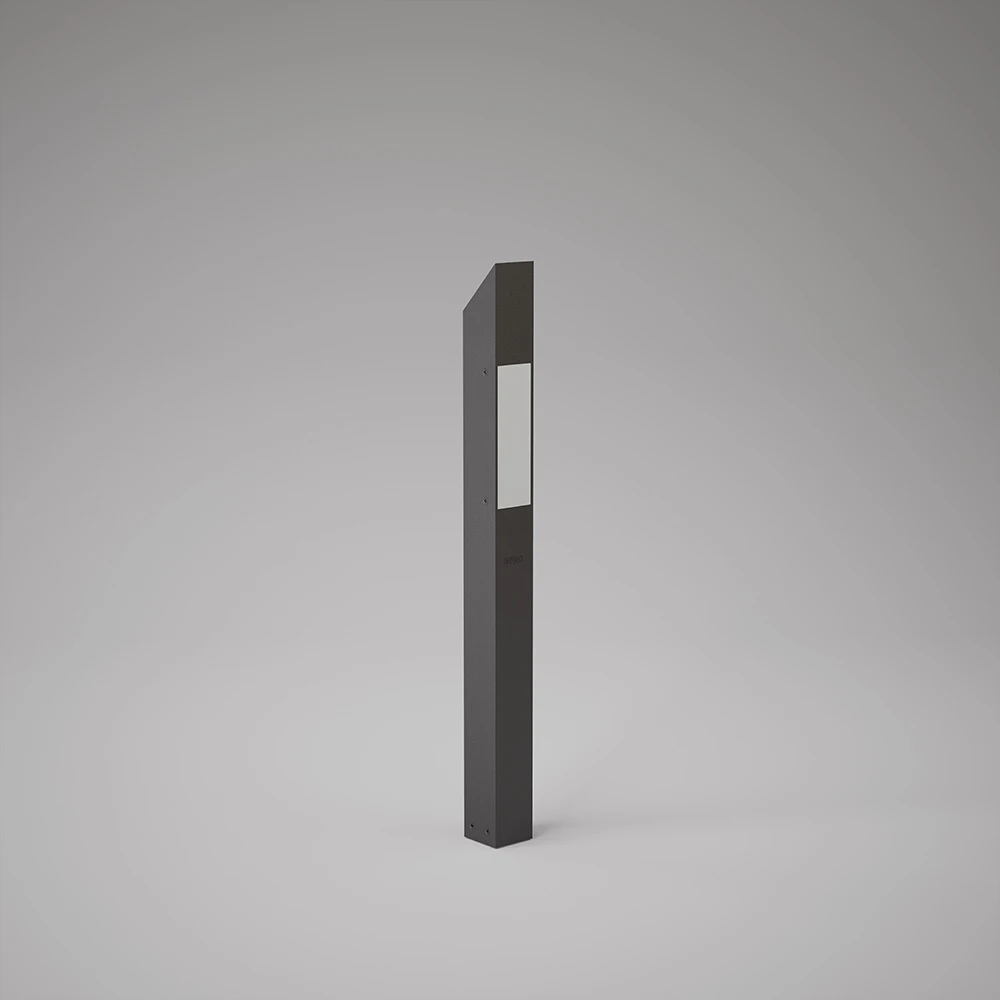

The Chertan bollard is a masterpiece of modern design, featuring a stylish square shape crafted from aluminum. Its sleek profile is enhanced by an intelligently placed light on the front face of the pipe, providing both practical illumination and a striking visual effect . The top part is subtly chamfered, adding a touch of sophistication and improving its aesthetics.

BIS Approved

Ingress Protection

Electrical Class I

Green Future

Make in India

No and Low Maintenance

Application areas

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    Aluminium , Steel

  • Diffuser

    PMMA Opal , PC Opal

  • Ingress Protection

    IP65

  • Serviceability

    Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    9W

  • Power Supply

  • Power Efficiency*

    ≥73%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤15%

  • LED^^

    High Bright LED

  • LED CCT Initial

    3000°K

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 40°C with wind effect

  • Average Ambient Temperature

    +25°C

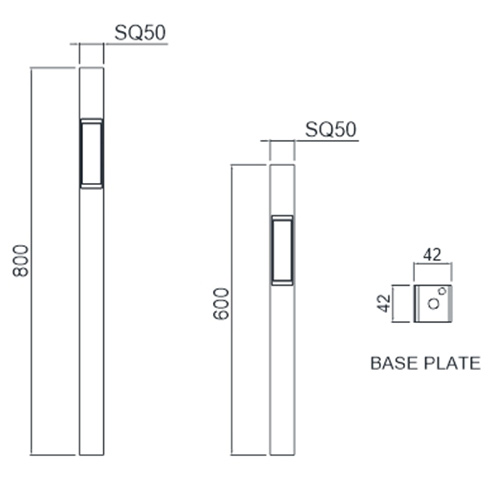

GAD

Downloads

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Chertan 50mm BP 600H 9w LED 30K Al 9 3000
2 - Chertan 50mm BP 800H 9w LED 30K Al 9 3000
