Alioth HMFL3

Alioth

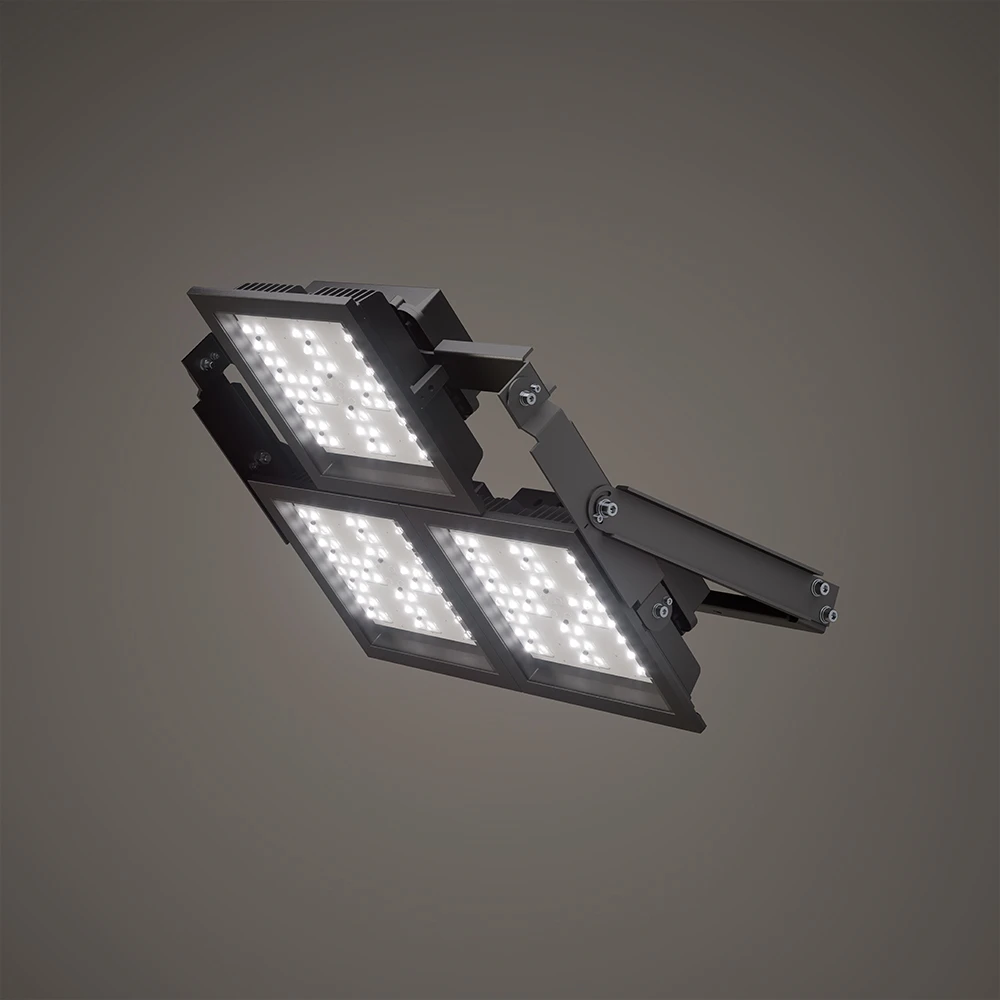

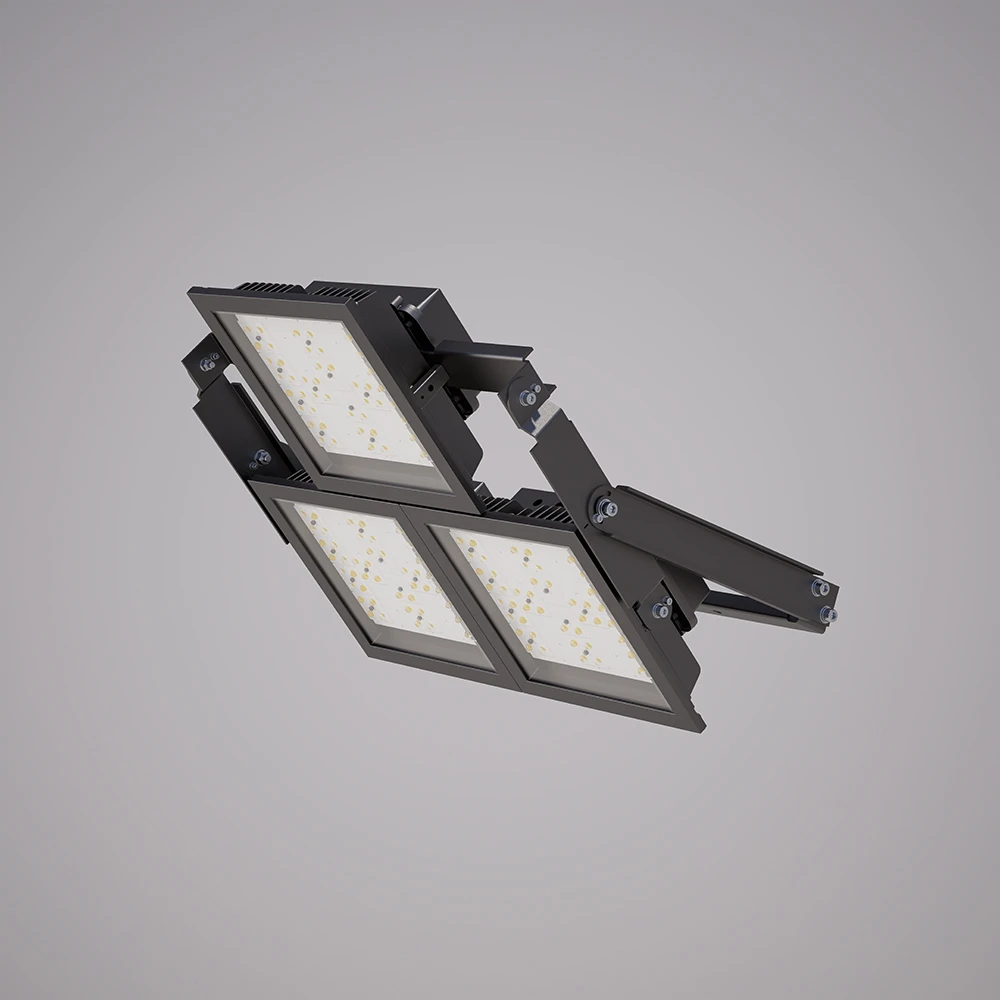

The Alioth Flood Light is expertly designed for floodlighting and large-area illumination, delivering brilliant performance for both commercial and industrial applications. Engineered to provide optimal brightness with minimal energy usage, it ensures enhanced visibility and safety in outdoor spaces.

Available in four wattage options, the Alioth Flood Light offers the flexibility to match various lighting requirements, making it an ideal choice for sports arenas, parking lots, building facades, and more. Its robust build ensures durability, even in harsh outdoor environments.

Ingress Protection 66

Electric Surge Protection

Impact Resistance 08

Electrical Class I

No and Low Maintenance

BIS Approved

Green Future

Make in India

Application areas

Airports Bicycle and Pedestrian Paths Brigdes and Flyovers Car Parkings Corporate and Commerical Places Gardens and Parks Railway and Metro Stations Religion Places Residential Complexes Theme and Amusement Parks

Key characteristics

  • Material of Construction

  • Housing

    High Pressure Die Cast Aluminium

  • Diffuser

    Toughened Glass

  • Optics

    Optical Grade Clear PC/PMMA

  • Ingress Protection

    IP66

  • Impact Resistance

    IK08

  • Serviceability

    Optical Compartment , Control Gear Compartment

  • Colour

    Graphite Grey , Any other RAL shade on request & confirmation

  • Power Supply

  • Power Efficiency*

    ≥85%

  • Power Factor*

    ≥0.95

  • Internal Surge protection

    4KV

  • Operating Input Voltage Range

    140 to 280V

  • ATHD*

    ≤10%

  • External Surge Protection**

    10KV

  • Electrical Safety Class

    I

  • Rated Voltage / Frequency

    240V / 50Hz

  • System Power Consumption Initial***

    720W

  • Installation Height

    3M , 4M , 5M , 6M , 7M , 8M , 9M , 10M , 11 M

  • LED^^

    High Bright LED

  • LED CCT Initial

    5700°K± 500°K

  • Optics

    Type V

  • LED CRI Initial

    ≥70

  • LED Lifetime @ Ta 25°C #

    50000 Hrs

  • Ambient Temperature Range

    -10 to + 50°C with wind effect

  • Average Ambient Temperature

    +25°C

  • Control method

    ON/OFF

GAD

Downloads

Ordering data

Sr. No. Item code Product description Watt(w) Cct(k)
1 - Alioth HMFL3 720w LED 57K 720 5700
